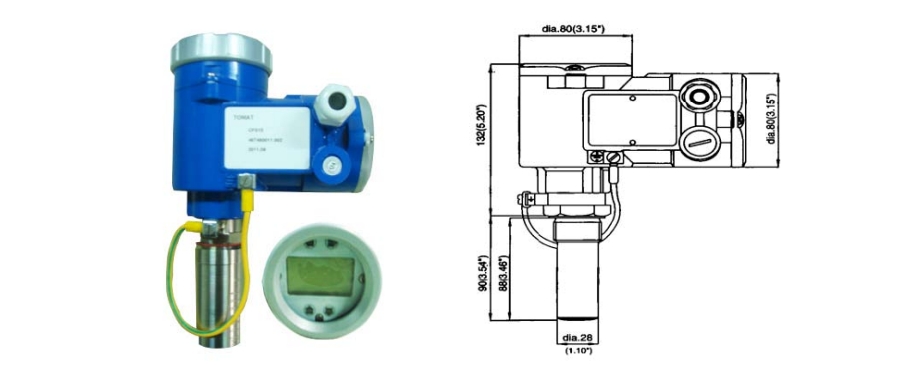

| Dimension | |
Summary: The type CFS10 electromagnetic flow transmitter used for measuring the flow of pipeline, colloid and suspension of conductive liquid. It can output an analog DC4 -20mA and two normally-on & closed contacts, with a 2 x 8 LCD display, in order to show the instantaneous velocity and transient flow. Transmitter for plug-in installation, easy to install and change, no moving parts, maintenance needless. Features: •Transmitter can undertake on-line detection and Settings • Replacement of electronic parts can be online •Small volume, convenient installation, especially advantageous for large pipe flow measurement •No moving parts, low pressure drop Technical data: Liquid medium：conductive liquid, colloid and suspension, solid materials affectless Electric conductivity：>20us/cm Measurement range：< 8m/s Max.fluid pressure：2.5 MPa Fluid temperature： -- 25 to + 150 ℃ Ambient temperature： -- 25 to + 60 ℃ Orifice：DN50 to DN1000 Process connection： G1 thread and bring welding joints Entrance straight section： 5 to10 times the diameter Export straight section： 3 to 5 times the pipe diameter Display：2 x 8LCD screen shown (optional) Output：4~20mA, 2*SPDT feasible Load：Less than 500 Ω Operating voltage：DC20-30V Repeatability：1% | |
