 | Overview CFS20 electromagentic flowmeter is widely used in different fields, such as sewage treatment, printing, chemical industry, tap water supply, etc. It does not contain any moving parts, rotating gears or turbines, or bearings. Instead, it relies on two electrodes to measure the density of the induced magnetic field that results from an electrically conductive fluid, such as water, flowing through a pipe. Therefore, there is no susceptibility to bearing wear or other mechanical wear-and-tear issues. •Digitization, local digital display of measurement results; •No moving parts •Bi-directional flow; •No pressure drop; •Suitable for water media; |
Dimensional drawing
General information
Range of application Electrode material Lining material Body material Pipe size Pressure rating | Water 316L stainless steel, Hastelloy C, Hastelloy B, Titanium, others Chloroprene rubber (CR) Polytetrafluoroethylene (PTFE/F4) Fluorinated ethylene propylene (FEP/F46) Teflon(PFA) Carbon steel 304 stainless steel DN10-DN2000 0.6MPa - 2.5MPa (Notes: high pressure can be customized) |
Outputs / inputs
| Analogue output Pulse output Frequency output Communication | 4 ... 20 mA, 2 relays(optional) Output pulse width: 0.25ms ~100ms Fmax ≤ 5000Hz RS232, RS845, HART (optional) |
Electrical data
| Operating voltage power consumption | 100-240VAC, 22VDC-26VDC Max 15VA |
Mechanical data
Process connection Flange standard Grounding | Clamp Flange ANSI GB Others Grounding electrode Grounding ring |
Accuracy
| Accuracy Repetitiveness | 0.5% 0.15% |
Ambient conditions
| Ambient temperature min. Ambient temperature max. Medium temperature min. Medium temperature max. Protection rating | -10°C 55°C -10°C 80°C IP65 (IP67/IP68 optional) |
Additional information
| Display function Operating unit | LED display 4 Mechanical keys |

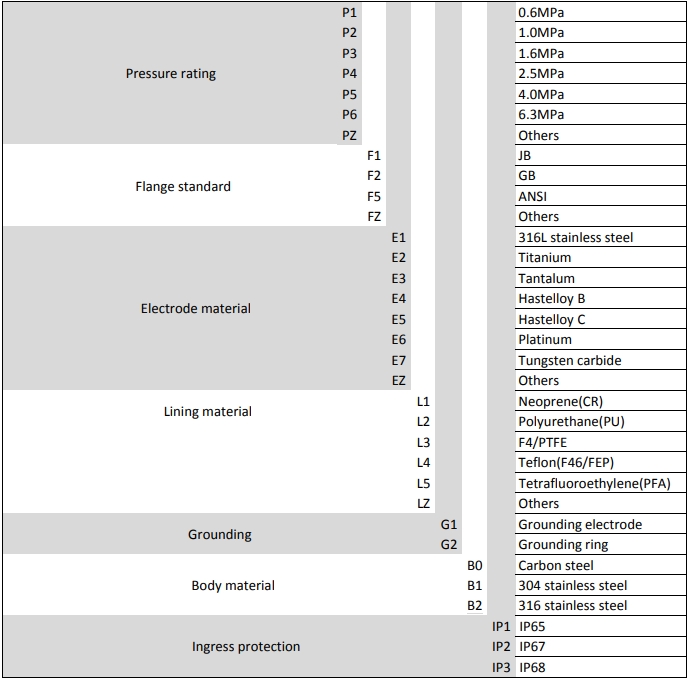

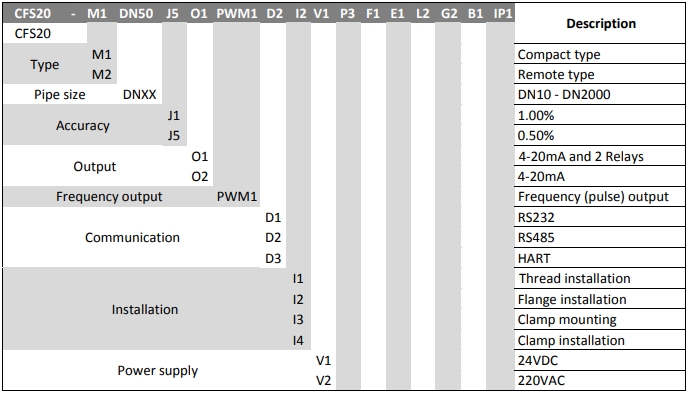

Ordering code
