Additional information

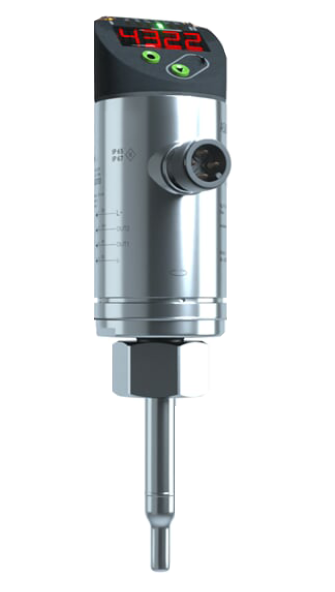

| Overview • For water, air, oils, glycol solutions, low-viscosity oils; different sensitivity curves can be programmed depending on the medium • Colour display signals at first glance whether the process is running within the target range • with IO-Link • extremely robust and more resistant to malfunctioning • Protection rating IP65/ IP67 |
Dimensional drawing

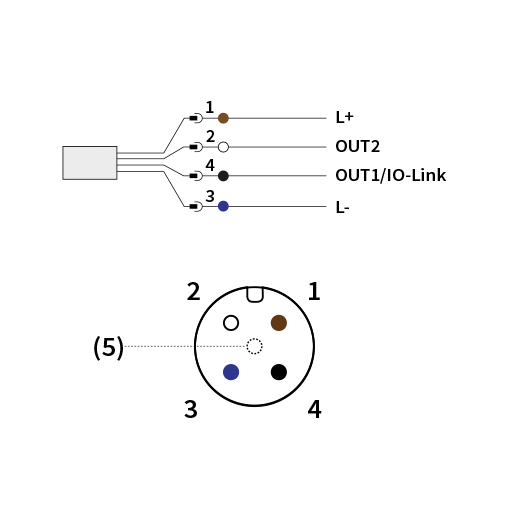

Dimensional drawing legend 1: LEDs (display unit / switching status) 2: 4-digit alphanumeric display 3: Programming button 4: Upper part of the housing can be rotated by 345° | Connection & pin assignment
|
General information
Range of application
Flow measurement speed of gaseous media Flow measurement speed of liquid media Parametrisation options
Temperature measuring range min. Temperature measuring range max. Adjustment range | Water; glycol solutions; air; oils low-viscosity oils with viscosity: = 40 mm²/s (40 °C) high-viscosity oils with viscosity: > 40 mm²/s (40°C) 2 ... 100 m/s 0.04 ... 3 m/s Hysteresis / window Normally open / Normally closed Switching logic Current /frequency output Media selection Damping Teach function Display rotates / can be switched off Standard unit of measure Colour of process value -20°C 90°C 0 ... 6 m/s (liquid) | 0 ... 200 m/s (gaseous) |
Outputs / inputs
Switching output Analogue output
Comment on analogue output
IO-Link | 2 x normally closed / normally open programmable 4 ... 20 mA Programmable Scalable When used with an analog output use exclusively sensor cables without LED Yes |
Electrical data
Operating voltage Voltage type Electrical design
Current carrying capacity max. Voltage drop max. Current consumption max. Protection class Short-circuit protection Overload-proof Reverse polarity protection | 18 ... 30 V DC Direct voltage (DC) PNP NPN* *Programming buttons *IO-Link parameterisation 250mA 2.5V 100mA III Yes Yes Yes |
Mechanical data
Materials in contact with the medium
Union nut tightening torque Material of housing
Electrical connection
Pressure resistance Process connection | V4A (1.4404) FKM 25 Nm V4A (1.4404) V2A (1.4310) PBT-GF 20 PBT-GF 30 M12 4-pin Contacts gold-plated 100 bar For adapter Internal thread M18 x 1.5 |
Accuracy
Resolution Reproducibility Response dynamics of T05 / T09 Comment
Accuracy Response time | 0.02 m/s * | 0.2 °C 0.05 m/s * 1,5 s * (for temperature monitoring) * applies to water ** MV = measured value, MREV = measurement range end value ± (7 % MV+ 2 % MREV) ** | ± 0.3 °C / ± 1 °C Water: 0.5 s; glycol: 0.8 s; air: 7 s; oil: 1.8 s (T09 for flow monitoring in each case) |
Ambient conditions
Ambient temperature min. Ambient temperature max. Protection rating | -40°C 80°C IP65 IP67 |
Additional information
MTTF Function display
Accessories included with delivery EMC test Shock resistance test Vibration resistance test Approval | 212years LED Yellow Green Programming keys 4-digit display Red / green display No accessories included DIN EN 60947-5-9 DIN EN 60068-2-27 DIN EN 60068-2-6 CE cULus |
