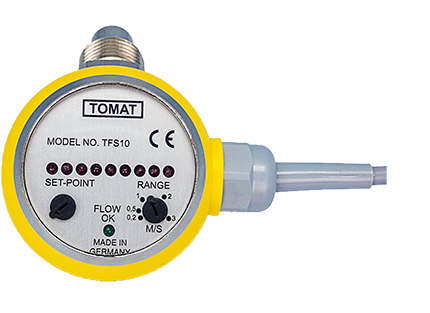

| Overview The type TFS10-13 is a family of compact, precise flow switches. The flow switches is ideally suited for use in automation processes or other industrial applications where liquid media must be monitored. The sensor works according to the calorimetric measuring principle, fully electronic and without mechanically moving parts. It detects the flow velocity of the medium and converts it into an electrical signal. •precise switching flow monitor •high switching accuracy even with slower flows •separate adjustment of set point and range •display of the flow and the switching point via LED chain •LED for output status •robust industrial design (special encapsulation) •Anti scaling •ISO 9001:2015 |
Dimensional drawing
| Connection & pin assignment
|
General information
Range of application Flow measurement speed of water Parametrisation options
Medium temperature min. Medium temperature max. Adjustment range | Water 0-20 cm/s to 0-300 cm/s cont. adjust Hysteresis Switching Damping Seperate adjustment for "range" and "set-point" Analog display of actual flow rate and display of adjusted set-point value Standard unit of measure Colour of process value - 20°C + 80°C approx. 20% - 90% of measuring range setting |
Outputs / inputs
| Switching output | 1 x PNP |
Electrical data
Operating voltage Voltage type Current consumption Power consumption Switching current. Circuit protection Voltage drop Initial operation Electrical output Switching condition with flow < switching point LED Switching condition with flow > switching point LED | 18 ... 30 V DC incl. residual ripple Direct voltage (DC) max. 150 mA (pulsed) approx. 1 W ≤ 400 mA reverse polarity, short circuit and overload < 2,5 V at max. load approx. 10s after connection of power
currentless, not switched off energized, switched green |
Mechanical data
Material of sensor probe Material of housing Electrical connection
Pressure resistance Body dimensions Process connection
| stainless steel AISI 303 (other material on request) PBTP, glass fibre reinforced (Ultradur ®) integrated plug connection with PG9 fitting, 2 m oilflex cable 3 x 0,5 mm² Contacts gold-plated 100 bar see drawing G ½“ BSP alt. ½“ 14 - NPT |
Accuracy
Hysteresis Repeatability tolerance Linearity deviation Temperature drift Response time | approx. 10% <2% < 5 % most favourable straight line related to the final value < 3 % per kelvin 2 sec. - 10 sec., according to range setting of water |
Ambient conditions
Ambient temperature min. Ambient temperature max. Protection rating
| 20°C + 70°C IP65 |
Additional information
Function display
Accessories included with delivery | LED Red No accessories included |
