 | Overview The BL310C capacitive input type liquid level gauge is based on the principle that the measured liquid static pressure is proportional to the height of the liquid. It uses advanced isolation type diffusion silicon sensitive elements or ceramic capacitive pressure sensitive sensors to convert static pressure into electrical signals, which are then temperature compensated and linearly corrected to convert into standard electrical signals (generally 4-20mA/1-5VDC). It is a widely used level gauge in mechanical engineering and automation control, which can be connected to meter heads, recorders, computers, PLC program controllers or alarms. |
In daily use - proven millions of times over. Products from
TOMAT are under high quality requirements regarding
robustness, insensitivity and reliability.
We offer 3 years warranty - with money-back guarantee!
Dimensional drawing

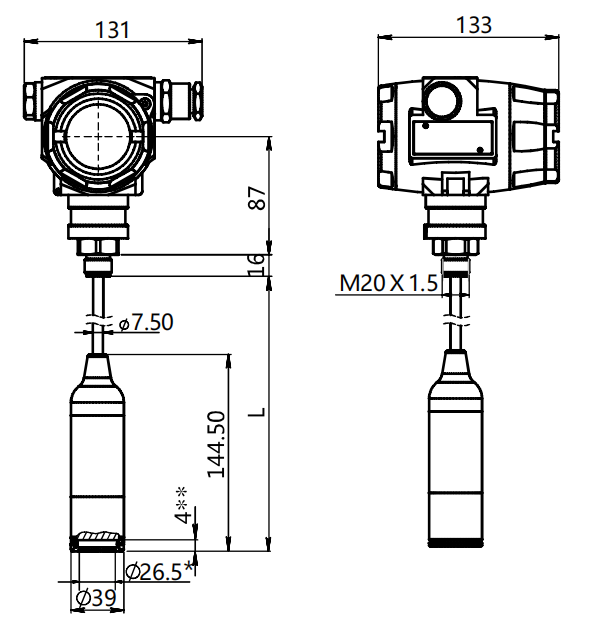

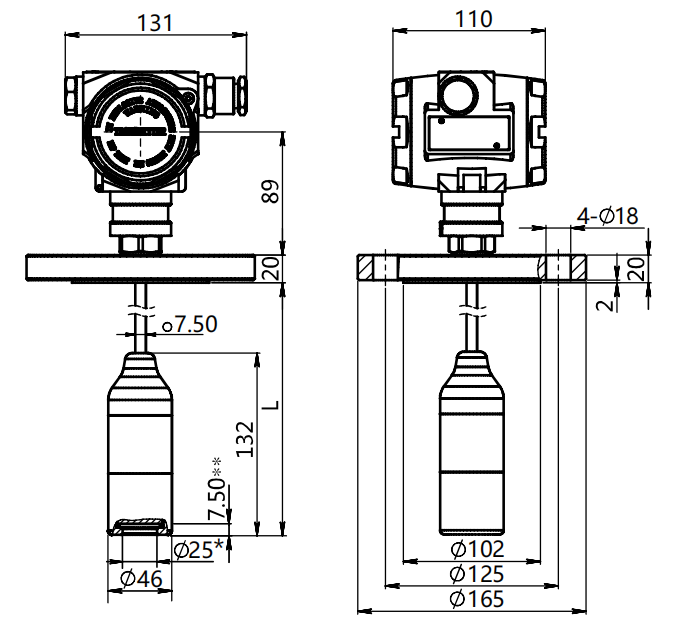

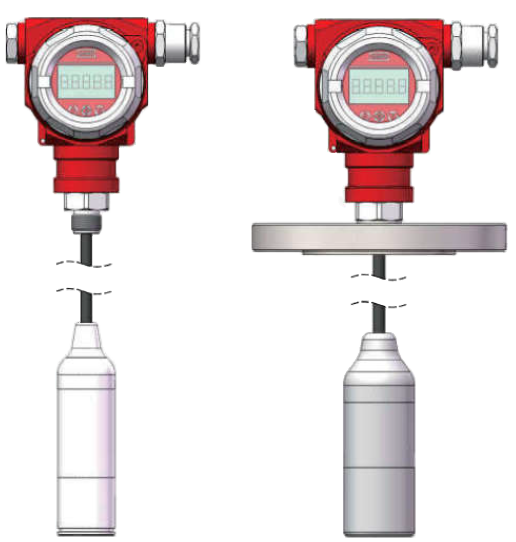

Standard screw mounting without display (A) Overall dimensions (unit: mm) | Anti-corrosion flange installation without display (A) Overall dimensions (unit: mm) |
|
|
*This size is the diaphragm measurement diameter ** This size is the distance of the sensing diaphragm to the bottom | *This size is the diaphragm measurement diameter ** This size is the distance of the sensing diaphragm to the bottom |
General information
| Applicable medium
Measuring range sensor type
Display Overload pressure Burst pressure Operating temperature min. Operating temperature max. Response time | It can be applied to viscous, weak acid, weak base, liquid containing scale or impurities 0-200m Ceramic capacitor isolation membrane (AL203 content 96%) Isolation membrane filling liquid Explosion-proof glass lid with LED display 150%FS 200%FS -40°C 125°C ＜1ms (10...90%FS) |
Outputs
output signal | 4-20mA、Hart、RS485、Modbus-RTU |
Electrical data
Operating voltage Electrical connection Electrical protectio | 12-36V DC Wiring terminal Overload/reverse protection |
Mechanical data
| Liquid contact material Cable material Seal Installation mode | Stainless Steel 316L (optional PP, PTFE) Polyurethane and PTFE O-circle, laser welding Thread and flange |
Accuracy
Comprehensive accuracy Repetition accuracy Zero temperature drif | ±0.1%FS，±0.25%FS，±0.5%FS ≤± 0.1%FS/year ±0.02FS/℃ |
Ambient conditions
| Ambient temperature min. Ambient temperature max. | -40°C 80°C |
Additional information
| Protection rating Explosion-proof class | Electrical part IP65(Optional IP68) ExdIICT6, NEPSI |
