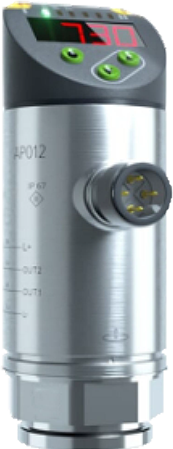

| Overview • For liquid and gaseous media • 0...400 bar • 2x programmable normally open/ normally closed • with IO-Link, 4-digit alphanumeric display and alternating display in red/green • ceramic-capacitive pressure sensing element |
In daily use - proven millions of times over. Products from Tomat
are under high quality requirements regarding robustness,
insensitivity and reliability.
We offer 3 years warranty - with money-back guarantee!
Dimensional drawing
Dimensional drawing legend 1: 4-digit alphanumeric display / alternating indication of red and green 2: LEDs (display unit / switching status) 3: Programming buttons 4: Upper part of the housing can be rotated by 345° | Connection & pin assignment

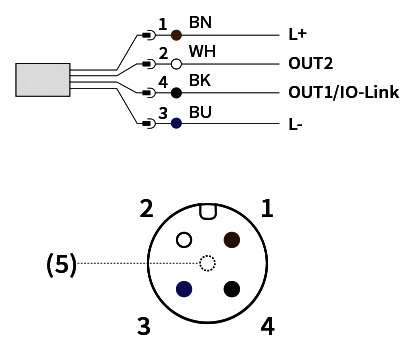

Wiring & pin configuration legend OUT1: switching output IO-Link OUT2: switching output |
General information | |
| Range of application Type of pressure Pressure measuring range min. Pressure measuring range max. Switching frequency Bursting pressure Pressure resistance Process connection | Liquid and gaseous media Relative pressure 0 bar 400 bar 170Hz 1600 bar 600 bar G 1/4 Internal thread |
| Outputs / inputs | |
Switching output IO-Link | 2 × normally closed / normally open programmable Yes |
| Electrical data | |
Operating voltage Voltage type Electrical design
Current carrying capacity max. Voltage drop max. Current consumption max. Protection class Short-circuit protection Overload-proof Reverse polarity protection | 18 ... 30 V DC Direct voltage (DC) PNP NPN* *Programming buttons* IO-Link parameterisation 150mA 2.5V 35mA III Yes Yes Yes |
Mechanical data | |
Materials in contact with the medium
Union nut tightening torque Minimum number of switching cycles Material of housing
Electrical connection
| V4A (1.4404) FKM Al203 (ceramic) 25 ... 35 Nm 100 million V4A (1.4404) PC PBT+PC-GF 30 PBT-GF 20 M12 4-pin Contacts gold-plated |
| Accuracy | |
Hysteresis Resolution Reproducibility Switching point accuracy Linearity deviation Delay time adjustable Ready delay | < ± 0.25% 0.1bar < ± 0.1% < ± 0.5 % < ± 0.25 % (BFSL) 0 ... 50 s 0.3 s |
| Ambient conditions | |
Ambient temperature min. Ambient temperature max. Medium temperature Protection rating | -25°C 80°C -25 ... 80 °C°C IP65 IP67 |
Additional information | |
MTTF Function display
Accessories included with delivery EMC test
Shock resistance test Vibration resistance test Pressure Equipment Directive Approval
| 224years Yellow Green 3 x LED 2 x LED Programming keys No accessories included DIN EN 61000-6-2 DIN EN 61000-6-3 DIN EN 60068-2-27 DIN EN 60068-2-6 Good engineering practice CE cULus |
Ordering information | |
Part No. AP012 AP013 AP014 AP015 | Pressure range 0 ... 25 bar 0 ... 100 bar 0 ... 250 bar 0 ...400 bar |
