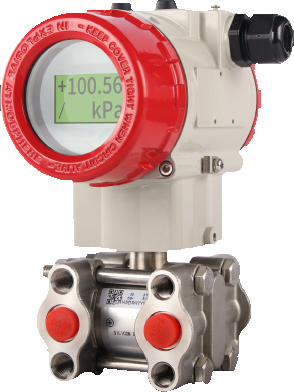

BP-3051 Differential Pressure Transmitter

Differential pressure transmitter BP-3051 is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. BP-3051 outputs a 4~20 mA DC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.

Applications

  •  Industrial control

  • Chemical field

  • Electricity

  • Metallurgy

  • Petroleum industry

  • Forging industry

  • Water affairs

  • Brewing

Features

  • Full range coverage: -100kPa~ 1KPa ~ 3MPa

  • High precision mono c-Si technology: 0.075%

  • Super static pressure detection performance

  • The central sensing unit adopts high-precision

    silicon technology

  • Patented double overload protection

  • diaphragm design, one-way overpressure up to 40MPa

  • The upper and lower limits of the range can be adjusted

    arbitrarily, with wider adaptability

  • Optional multi-parameter output application

  • EMC complies with the latest national standards


BP-3051

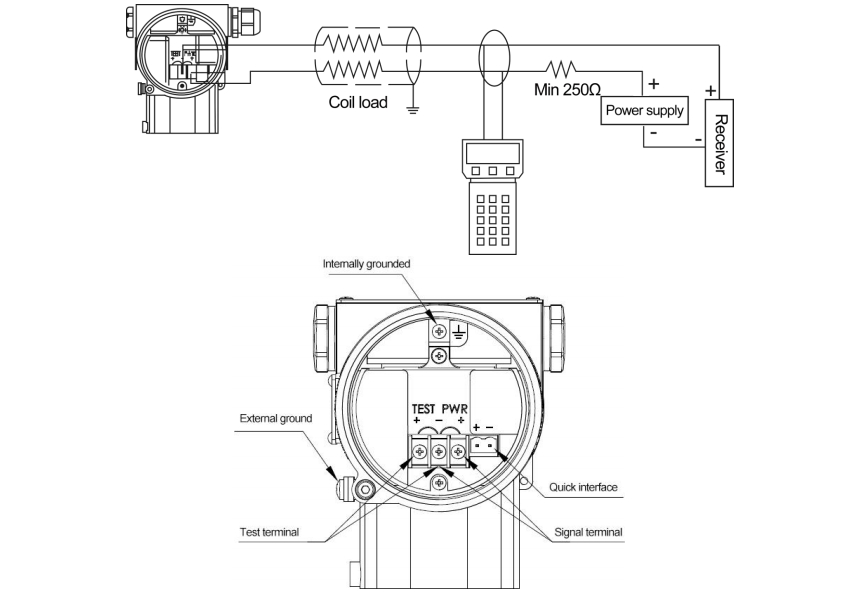

Wiring

Since the transmitter does not have a power switch, the system must be equipped with an overcurrent protection or power cut-off device. Check that the operating voltage is the same as specified on the nameplate. The output signal of the power box shares a pair of phase wires. Electrical connections can be made with terminal blocks via NPT1/2 or M20x1.5 cable entries. The wire connection terminal can be connected to wires with a cross-sectional area of less than 2.5mm.

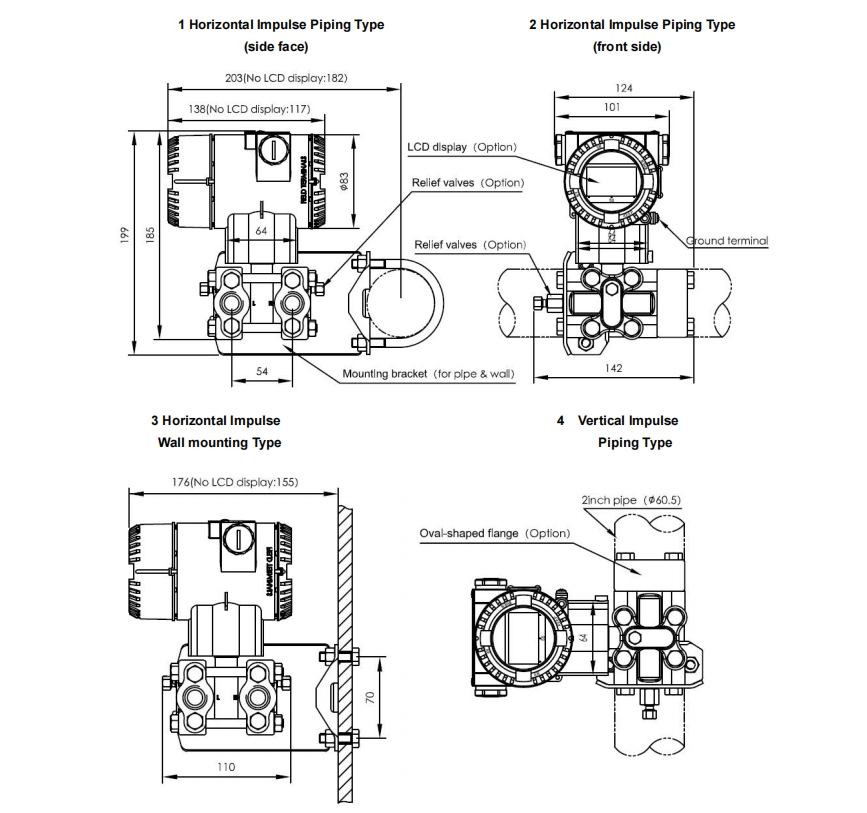

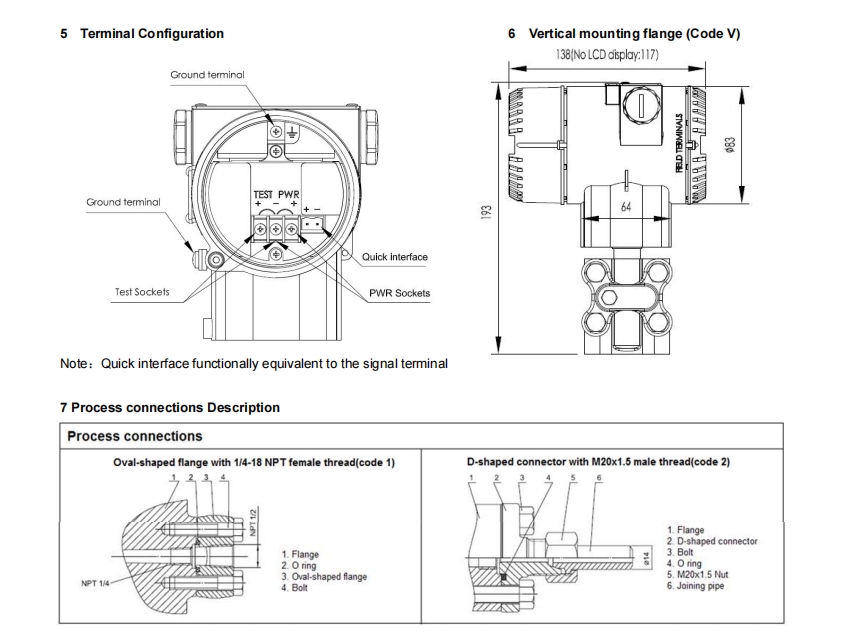

Dimension

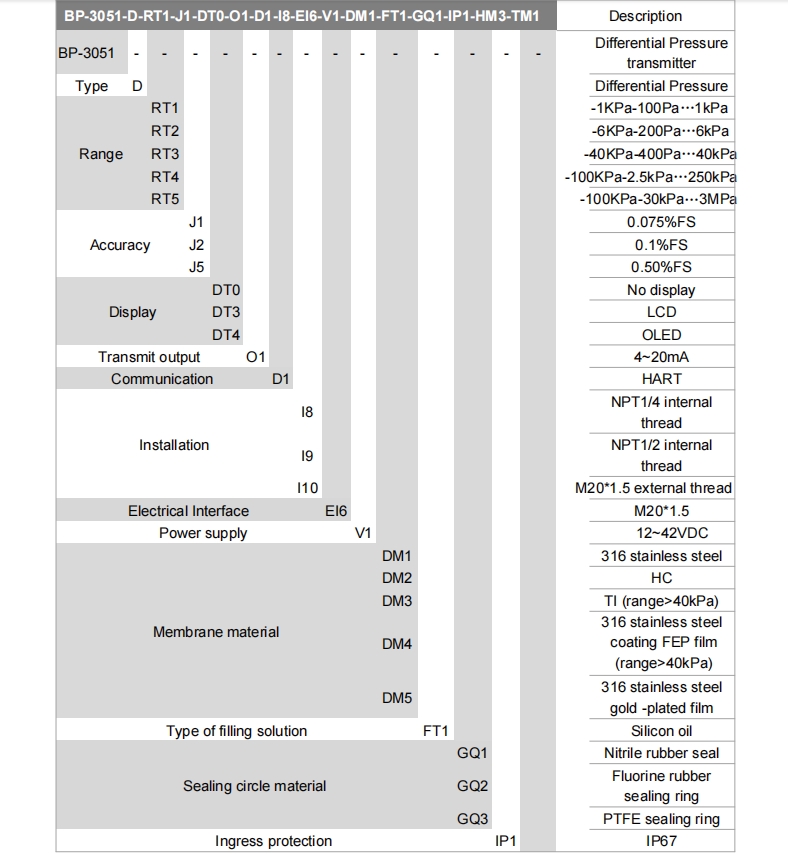

Ordering code
