| Overview • for liquid and gaseous media • G 1/4 external thread /M5 internal thread • 2x normally closed / normally open antivalent • with LED switch indicator • can be easily set via setting rings |
In daily use - proven millions of times over. Products from TOMAT are under highest quality requirements regarding robustness, insensitivity and reliability. We offer 3 years warranty - with money-back guarantee! |

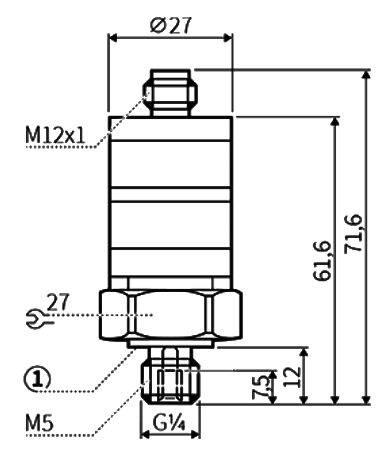

Dimensional drawing

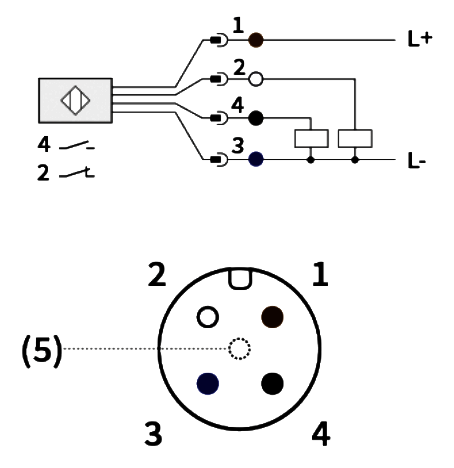

| Connection & pin assignment
|
General information
Range of application Pressure measuring range min. Pressure measuring range max. Switching frequency Bursting pressure Pressure resistance Process connection | Liquid and gaseous media 0 bar 400 bar 100Hz 1600 bar 600 bar External thread G 1/4 Internal thread M 5 |
Outputs / inputs
Switching output IO-Link | Antivalent: Normally open + normally closed (adjustable) No |
Electrical data
Operating voltage Voltage type Electrical design Current carrying capacity max. Voltage drop max. Current consumption max. Protection class Short-circuit protection Overload-proof Reverse polarity protection | 9.6 ... 32 V DC Direct voltage (DC) PNP 500mA 2V 25mA III Yes Yes Yes |
Mechanical data
Materials in contact with the medium
Measuring cell material Material of housing
Electrical connection | V4A (1.4404) FKM V4A (1.4404) PBT V4A (1.4404) PC FPM M12 4-pin Contacts gold-plated |
Accuracy
Reproducibility | < ± 0.5% |
Ambient conditions
Ambient temperature min. Ambient temperature max. Protection rating | -25°C 85°C IP67 |
Additional information
| MTTF Function display Accessories included with delivery EMC test Shock resistance test Vibration resistance test Adjusting ring Approval | 540years LED Yellow Green Seal DIN EN 61000-4-2 ESD DIN EN 61000-4-3 HF radiated DIN EN 60068-2-27 DIN EN 60068-2-6 Switching point compensation CE cULus |
Ordering information
Part No. AP001 AP002 AP003 AP004 AP005 | Pressure range 0 ... 10 bar 0 ... 25 bar 0 ... 100bar 0 ... 250 bar 0 ... 400 bar |
