| Overview • For liquid and gaseous media • 0...10 bar • Analogue output • with IO-Link, 4-digit alphanumeric display and alternating display in red/green • ceramic-capacitive pressure sensing element |
In daily use - proven millions of times over. Products from TOMAT are under highest quality requirements regarding robustness, insensitivity and reliability. We offer 3 years warranty - with money-back guarantee! |

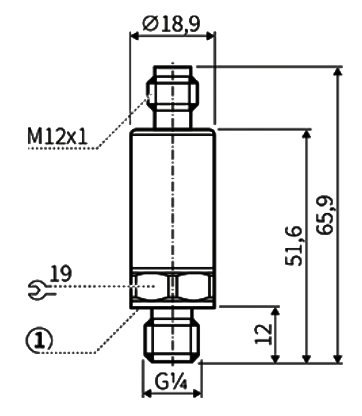

Dimensional drawing

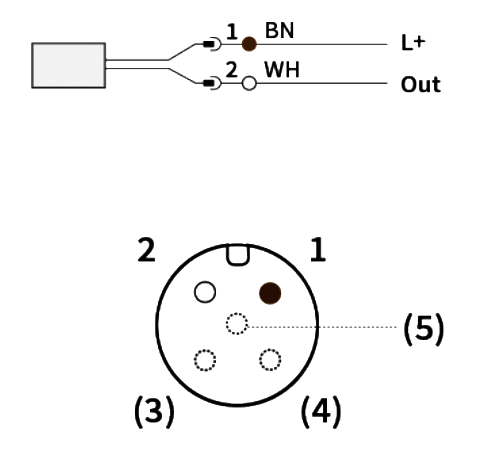

| Connection & pin assignment
|
Dimensional drawing legend 1: Process connection sealing FKM / DIN 3869 | Wiring & pin configuration legend OUT: analogue output 4 ... 20 mA |
General information
Range of application Pressure measuring range min. Pressure measuring range max. Bursting pressure Pressure resistance Process connection | Liquid and gaseous media 0 bar 10 bar 400 bar 600 bar External thread G 1/4 |
Outputs / inputs
Analogue output IO-Link | 4 ... 20 mA No |
Electrical data
Operating voltage Voltage type Electrical design Protection class Short-circuit protection Overload-proof Reverse polarity protection | 8.5 ... 36 V DC Direct voltage (DC) PNP III Yes Yes Yes |
Mechanical data
Materials in contact with the medium Material of housing Electrical connection | V4A (1.4542) PEI V4A (1.4404) FKM V4A (1.4542) M12 2-pin Contacts gold-plated |
Accuracy
| Hysteresis Reproducibility Accuracy | < ± 0.2 % < ± 0.05% < ± 0.5 % |
Ambient conditions
Ambient temperature min. Ambient temperature max. Protection rating | -40°C 90°C IP67 IP69k |
Additional information
Accessories included with delivery EMC test Shock resistance test Vibration resistance test Approval | No accessories included DIN EN 61000-6-2 DIN EN 61000-6-3 DIN EN 60068-2-27 DIN EN 60068-2-6 CE cULus |
Ordering information
Part No. AP016 AP017 AP018 AP019 AP020 | Pressure range 0 ... 10 bar 0 ... 25 bar 0 ... 100 bar 0 ... 250 bar 0 ...400 bar |
