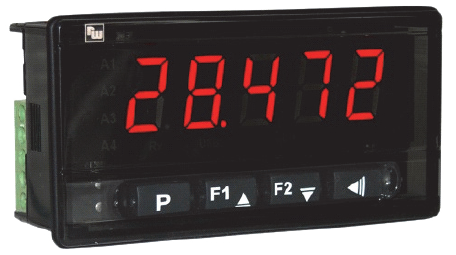

Overview This small universal display is a true all-rounder. It has a universal input for nearly all standard commercial temperature sensors and process signals. With its 24VDC sensors supply voltage up to 50 mA, an integrated totalising function and 2 relay outputs it is suitable for almost every application. Apart from the low installation depth, the ip65 front, the removable terminal blocks and the impressive clear display with 16 mm digit height, this product captivates by its excellent price/quality ratio.
· Universal display in 96 x 48 mm format · Extremely low mounting depth 32 mm · Universal input for process signals, thermocouples, Pt100 · 16 mm high red LED display · 2 alarm outputs · High protection class IP65 (front) · Programming through buttons or software (USB-Port)
Display: LED-Display, 5-digit, red with 16 mm high figures, Display area/measured value: -1.999 bis 30.000 Display area/Sum: 0 bis 9.999.999.999 (alternating display) Indication: 10 red indicators for alarm states, serial communication, totaliser function, min. and max. value. °C, °F ON, depending on selection TX, RX, USB ON, communication via interface A1, A2 ON, when an alarm occurs TOT ON, totaliser function HIGH ON, totaliser 6 up to 10 digits are displayed LOW ON, when 1 up to 5 digits are displayed

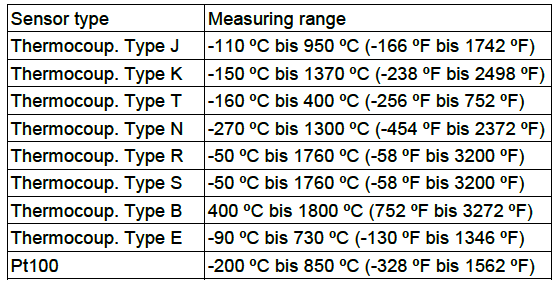

Buttons: 4 buttons are for programming and adjusting nominal values. Entry area: Adjustment of the input signal via buttons. Thermocouple: Type J, K, T, N, R, S, B, E; reference junction: Internal temp. sensor: Pt100 in 3-wire (alpha=0,00385) Linear inputs: 0V up to 5/10V, 0/4 mA up to 20 mA, 0 mV up to 50 mV
Accuracy: Thermocouples type J, K, T, E : 0,25 % of the range +/-1 °C Thermocouples type N, R, S, B: 0,25 % of the range +/-3 °C Pt100: 0,2 % of the range Linear analog input: 0,2 % of the range |
Resolution: internal resolution with 65.535 steps (16 Bit), resolution of display 32.000 steps. Measurement cycle: 55 Hz with programmable filter Input impedance: Thermocoup. Pt100, 0 to 50 mV: >10 moHM; 0 to 5/10 V: >500 KOhm; 0/4 to 20 mA: 100 Ohm Sensor power supply: 24 VDC +/-15 % @ 50 mA
Relay output: 2 closing contacts with separated grounds. 1,5 A at 240 VAC/30VDC Serial interface: Mini-USB (virtual COM-port) Operating power supply: 100 to 240 VAC +/-10 %, 50/60Hz, 6 VA
Protection class: front: dust-tight and jet-proof (IP65) Reverse side: IP20 Housing: Front: plastic housing of polycarbonat (PC) L94-V2 Reverse side: ABS + PC UI94 V-0. Dimensions: W 96 mm x H 48 mm x D 35 mm. panel space measuring according to DIN: 93,0 x 45,5 mm. mounting by means of lockable clamping brackets (plastic) Connection: Via pluggable screw terminals. Environmental conditions: Operating temperature: 0° C to 50° C Relative air humidity: 80% r.a.h. @ 30° C For temperatures above 30° C: 3% r.a.h. reductions per ° C Scope of delivery: Device, fixing material, seal, operating instructions. |
