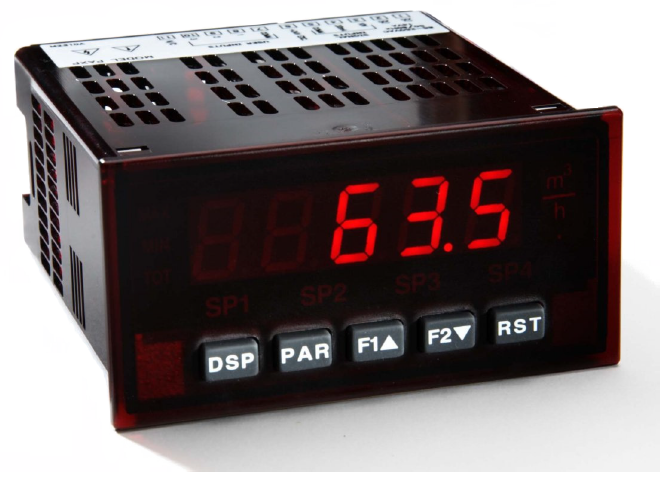

Overview The digital display unit PAX DP converts the analog output signal of flow- and vent-captor units into a digital value. The PAX DP has the capability to accept two, 0/4-20 mA or 0-10 VDC input signals which can be independently scaled and displayed. · 5 digit display, 14 mm high, red LED · Display setting: MIN/MAX/TOT/IST · Up to 105 measurements per second / 16bit resolution · 16 step linearisation · Programmable by push buttons at the unit itself or by PC |
|
| Handling:The unit will be operated by 5 push buttons on the front panel. During the programming action it will be specified which displayed values and programmed data will be changeable or protected after activating the programming stop. Totalizer: The signal totalizer can be used to compute a time - input product. This can be used to provide a readout of totalized flow. A time base and a factor provide a flexible unit. Unit: An individual physical unit (for example: m³/h) can be positioned behind the front panal. If the unit sheet is transparent it will be illuminated by a background light. |

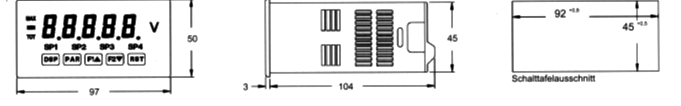

Mechanical Data
| Material housing Relative air humidity Operating temperature Protection standard | robust plastic housing, dark red max. 85%, no condensation 0 - 50°C IP 65 on to front panel |
Electrical Data
| Supply voltage
Power consumption Input signals Connection | PAX DP010 (DC) 18-36 VDC PAX DP000 (AC) 85-250 VAC (DC) 13W / (AC) 21 VA 2 x 0-10V or 0/4-20 mA backside terminal row |
Additional Output Function Cards
PAXCDL10 / Analog output
PAXCDS40 / Transistor output PAXCDS10 / Relay output | output signal can be selected, 0 to 20 mA, 4 to 20 mA or 0 to 10 VDC output is galvanic isolated 4 x PNP-OC transistors: max. 100 mA/30 V, galvanic isolated 2 x relay, single pole double throw contact 5A at 120/240 VAC |
